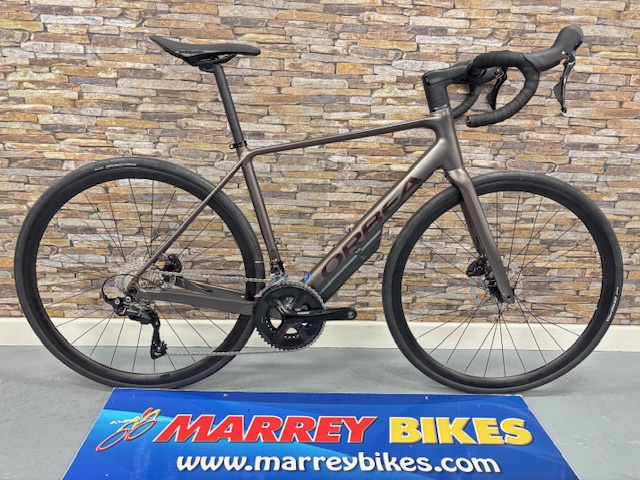

Orbea AVANT H30 Road Bike

The new Orbea Avant H30 is the aluminum road bike ready for long comfortable rides.Discover the perfect companion for your cycling adventures with the Orbea AVANT H30 Road Bike. Comfortably crafted for long rides ahead!

The new Orbea Avant H30 Road Bike is our aluminum road bike ready for long comfortable rides. A perfect companion, no matter how far the road takes you. Fill your water bottles every time you head out because with Avant’s blend of speed and comfort, you could be out for a long ride.

Size 53cm -Suitable for a person- 170 cms to 177 cms

Frameset

Frame

Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5″ ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.

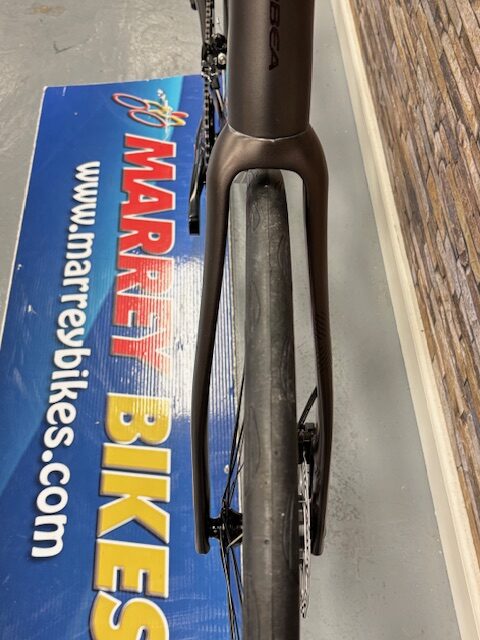

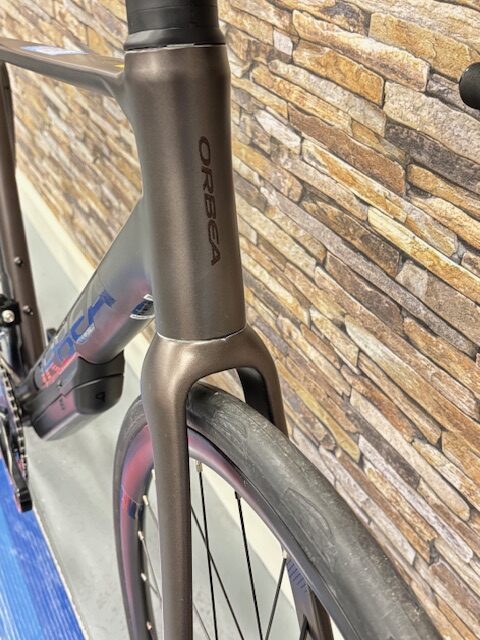

Fork

Orbea Avant Hydro 2025, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Steerer tube

FSA 1-1/2″ Integrated Aluminium Cup

Drivetrain

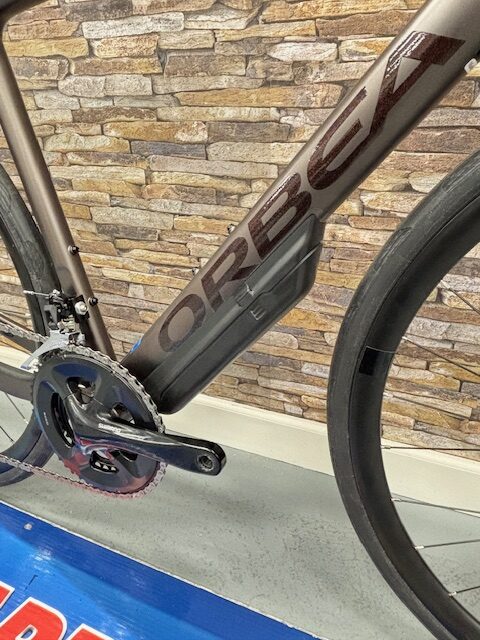

Crankset

Shimano RS520 34x50t

Shifters

Shimano R7120

Cassette

Shimano 105 R7100 11-34t 12-Speed

Rear derailleur

Shimano 105 R7100

Front derailleur

Shimano 105 R7100

Chain

Shimano M6100

Cockpit

Handlebar

OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125

Stem

OC Road Performance RP23, -5º

Brakes

Shimano R7170 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Alloy, Tubeless, 700c, 19c, 28H

Tyres

Continental Grand Prix Foldable 700x30c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Solid

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Components

Seatpost

SP 0.6, Alloy, 27.2mm, Setback 20

Saddle

SD 0.1 145mm

Accessories

Mudguard

N/A

Handlebar Tape

Orbea Eva

Storage

OC Toolbox TB03PP

Bike Sizes	53cm

Orbea AVANT H30 Road Bike
