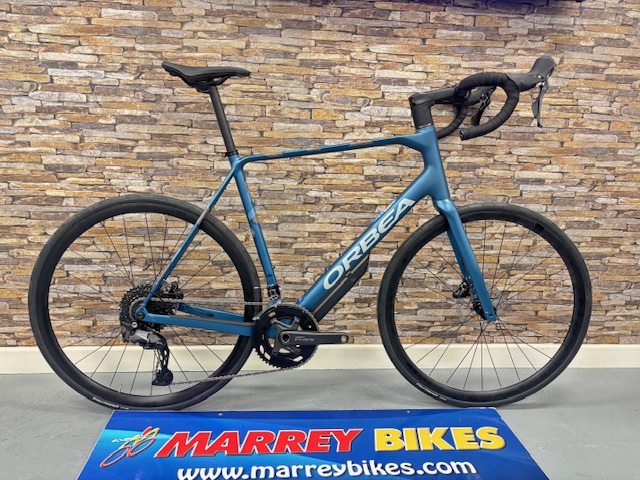

Orbea AVANT H40 Road Bike

Original price was: €1,799.00.Current price is: €1,699.00.

Discover the perfect balance of strength and comfort with the Orbea AVANT H40 Road Bike. Enjoy your biking adventures like never before! 🚴

The new Orbea Avant is our aluminium road bike ready for long comfortable rides.

Every single tube of the Orbea Avant has been designed for a purpose, to be light, to be strong, to aid comfort. Each tube is made of triple hydroformed triple butted aluminum. It is a light material which is easy to work with, as well as being budget friendly. To reduce weight Orbea thins the walls where the support isn’t needed and keeps thickness in the key areas like joints. This makes for a lightweight, durable bike that is built for endurance. Also the geometry has been altered to make for a more comfortable endurance ride.

Orbea endeavors to have ultimate power transfer to the pedals with no wasted movement. To achieve this, they lengthened the head tube,giving a higher hand position. This lets the rider ride upright. A much more comfortable position, one that can be maintained for hours.

The Avant is a bike that is made to make riding a pleasure, one that can last for years.

60cms only suitable for a person: 190 cms to 206



Specs

Frameset

Frame

Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5″ ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.

Fork

Orbea Avant Hydro 2025, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Steerer tube

FSA 1-1/2″ Integrated Aluminium Cup

Drivetrain

Crankset

Shimano Cues U6030 34x50t

Shifters

Shimano U6030

Cassette

Shimano CS-LG300 11-39t 10-Speed

Rear derailleur

Shimano Cues U6020 SGS Shadow

Front derailleur

Shimano Cues U6030

Chain

Shimano LG500

Cockpit

Handlebar

OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125

Stem

OC Road Performance RP23, -5º

Brakes

Brakes

Shimano U6030 Hydraulic Disc

Brakes Configuration

N/A

Wheels

Wheels

Alloy, Tubeless, 700c, 19c, 28H

Tyres

Continental Grand Prix Foldable 700x30c

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Solid

Rear Wheel Axle

Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Components

Seatpost

SP 0.6, Alloy, 27.2mm, Setback 20

Saddle

SD 0.1 145mm

Accessories

Mudguard

N/A

Handlebar Tape

Orbea Eva

Storage

OC Toolbox TB03PP

Bike Sizes
