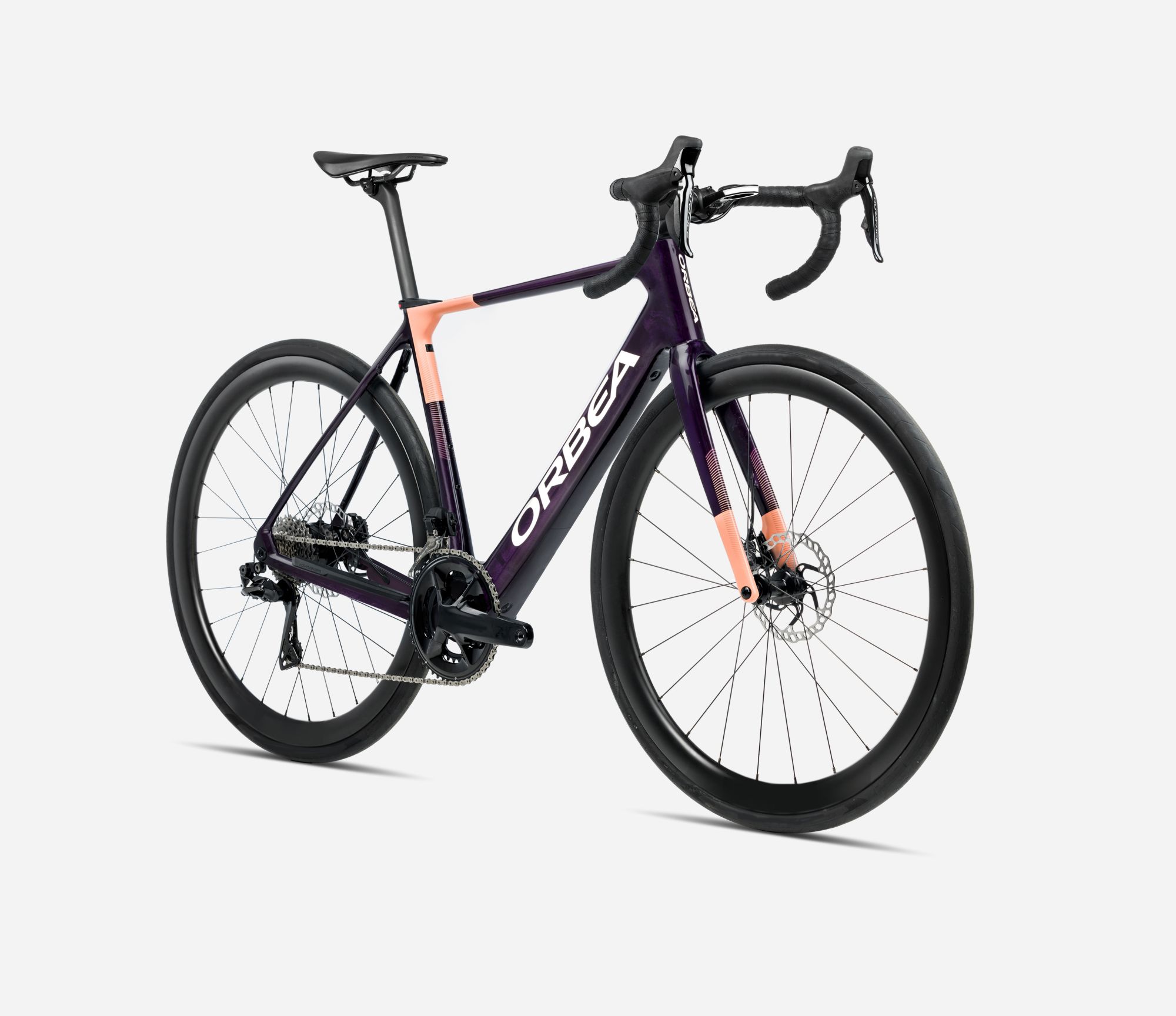

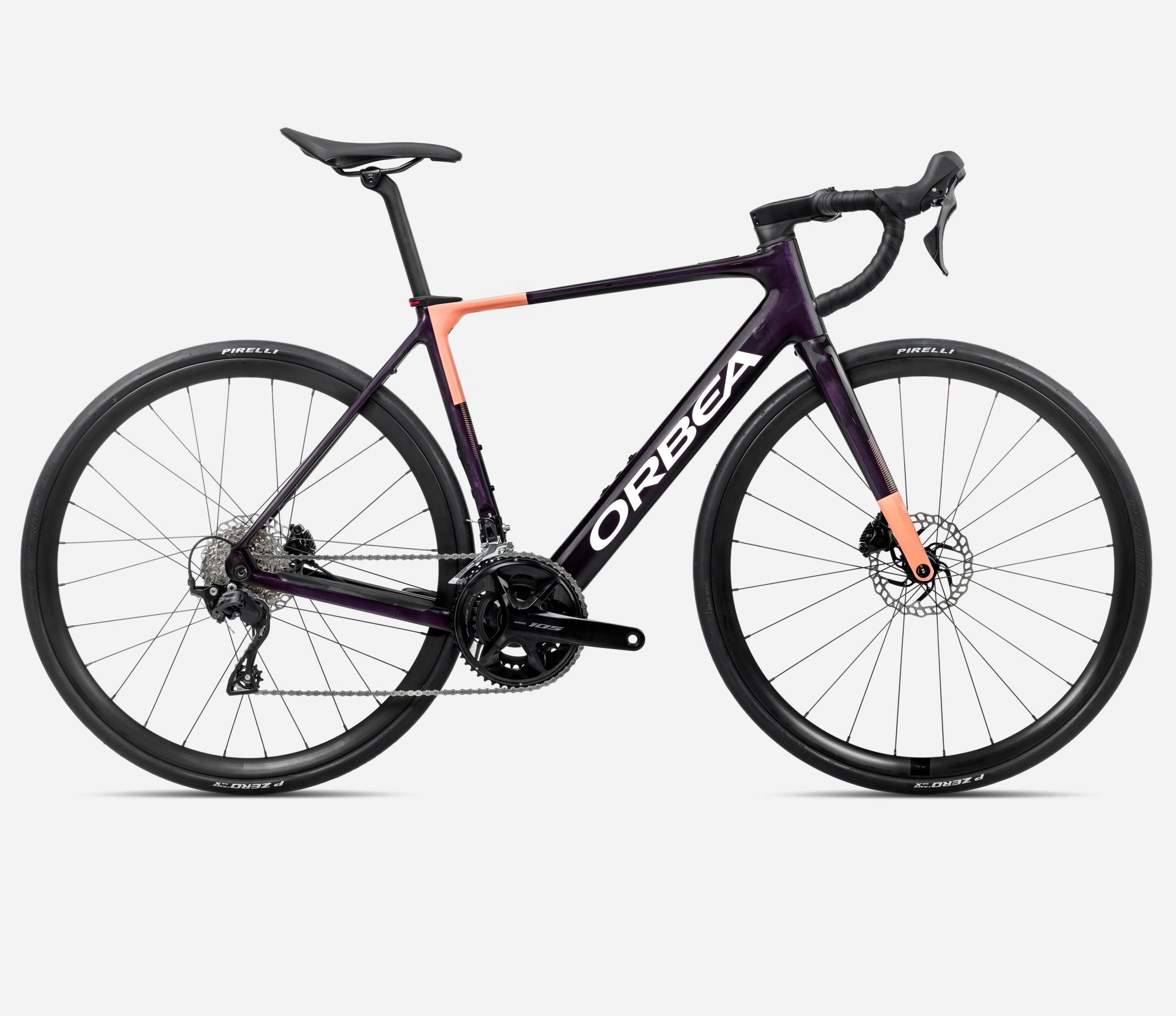

Experience the thrill of cycling with the Orbea Gain M30 Electric Road Bike. Its lightweight design and sporty agility handle every road challenge!An exceptionally light, sporty and agile bike to help you master all the challenges of the road.
Specs
Frameset
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700×35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork
Gain OMR carbon fork, 700×35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Steerer tube
FSA 1-1/2″ Integrated Aluminium Cup
Ebike
Battery
Mahle iX350 36V 353Wh
RANGE EXTENDER
N/A
Motor
Mahle motor hub X20, ALC
Display
Mahle Pulsar One monochrome ANT+ LEV
CHARGER
Mahle Active Charger up to 4A
Remote
Mahle ONE Head Unit (BT/ANT+)
Drivetrain
Crankset
Shimano 105 R7100 34x50t
Shifters
Shimano R7120
Cassette
Shimano 105 R7100 11-34t 12-Speed
Rear derailleur
Shimano 105 R7100
Front derailleur
Shimano 105 R7100
Chain
Shimano M6100
Cockpit
Handlebar
OC Road Performance RP21 Alu SL, Reach 80, Drop 125
Stem
OC Road Performance RP10, -8º
Brakes
Brakes
Shimano R7170 Hydraulic Disc
Brakes Configuration
N/A
Wheels
Wheels
Alloy, Tubeless, 700c, 21c
Tyres
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Front Wheel Axle
Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Wheel Axle
Orbea Thru Axle 12x142mm M12x2 P1 Lite
Components
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Aliante R5
Accessories
Front light
Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
Rear light
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
Handlebar Tape
Orbea Anti-Slippery/Shock Proof
