Base configuration
Frameset
Fork
SR Suntour NVX 80mm Q15x110
Frame
Orbea Kemen Mid bar 2026, Hydroformed Alloy 6061, High Polished, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, w/ Kickstand, Trailer compatible.
Headset
FSA 1-1/2″ Integrated Aluminium Cup
Ebike
Motor
Shimano EP600
Battery
Orbea 540 Wh Battery
Range Extender
N/A
Display
Shimano EN500
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Drivetrain
Chainring
Alloy 40t w/chainguard
Crank
Shimano Steps EM600
Shifters
Shimano Cues SL-U4000
Cassette
Shimano CS-LG300 11-46t 9-Speed
Rear derailleur
Shimano Cues U4000 GS Shadow
Chain
KMC eGlide
Cockpit
Handlebar

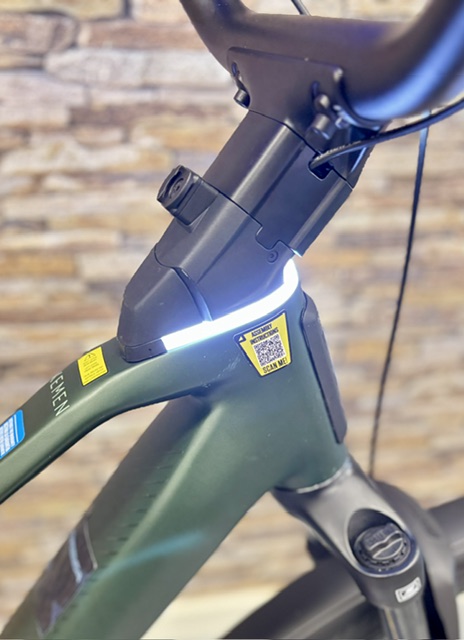

Orbea Urban, Integrated Light, Rise 50, Width 720
Computer Mount
Smartphone mount SP Connect SPC+
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Brakes Configuration
N/A
Wheels
Wheels
Alloy, 26c, 32H
Tyres
Schwalbe Marathon, 50-622, Reflective Tape
Components
Seatpost
Alloy, 31.6mm, Setback 0
Saddle
Selle Royal Vivo Ergo
Accessories
Rear light
Orbea Fender integrated, with alert light
Pedals
VP-892 Black with reflectors
Front carrier
N/A
Rear carrier
Orbea RR-01 Alloy, with Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Carrier accessories
N/A
Mudguard
Curana Apollo Orbit 60mm
Front Position Light
Orbea integrated, USB-C charging point
Front light
SUPERNOVA STARSTREAM PRO low beam
Quick stand
Massload rear adjustable
Bell
Knog Oi Small Flat
