The Scott Scale 20 Gravel bike was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Key Features
- Scale Alloy 6061 Frame
- Scale Rigid HMF Fork
- SRAM Eagle 70 Transmission 12 Speed Drivetrain
- Shimano Hyd. Disc Brakes
- Syncros X-28TR Rims
- Maxxis Aspen Foldable Tires
- Syncros Parts
-
Frame
Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System
BB92, UDH Interface, 12x148mm with 55mm Chainline -
Fork
Scale Rigid HMF
Postmount Disc Standard
Tapered Carbon steerer -
Rear Derailleur
SRAM Eagle 70 Transmission 12 Speed -
Shifters
SRAM Eagle 70 Trigger
-
Crankset
SRAM Eagle 70 Transmission
DUB, 55mm CL, 34T -
Chainguide
SCOTT custom -
BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm -
Chain
SRAM CN Eagle 70 Transmission -

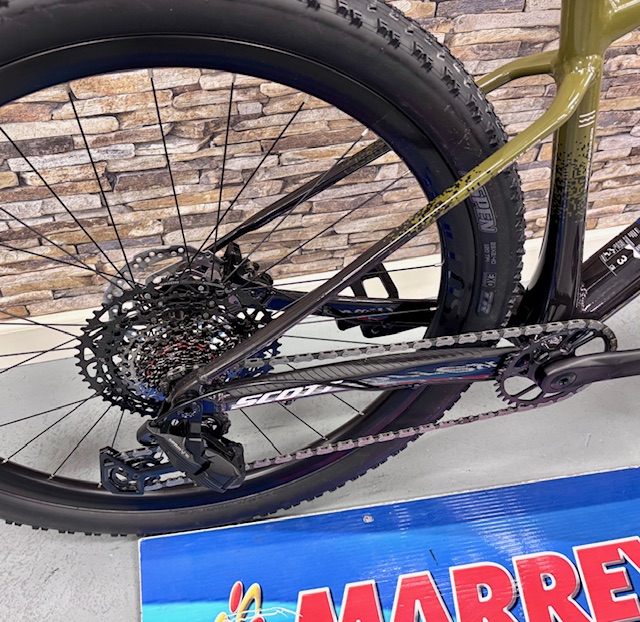

Cassette
SRAM Eagle XS 1270 V2 Transmission 10-52 -
Brakes
Shimano MT401 Disc Brake -
Rotor
Shimano SM-RT10 CL, 180/F and 160/R -
Handlebar
Syncros Alloy 6061
T shape Flat, 9°, 740mm
Syncros Performance XC lock-on grips -
H’stem
Syncros DC 3.0
Syncros Cable Integration System
0° rise, 6061 Alloy, 31.8mm, 1 1/8″ -
Seatpost
Syncros, 31.6x400mm -
Seat
Syncros Belcarra V2.5 Cut Out -
Headset
Syncros – Acros OE Cable Routing HS System
OD 50/62mm, ID 42/56mm -
Front Hub
Formula CL-811, 15x110mm -
Rear Hub
Formula CL-3248, 12x148mm -
Spokes
Stainless Black 15G, 1.8mm -
Rims
Syncros X-28, 28H, Tubeless ready -
Front Tire
Maxxis Aspen, 29×2.4″, 120TPI Foldable Bead
Tubeless Ready, EXO -
Rear Tire
Maxxis Aspen, 29×2.4″, 120TPI Foldable Bead
Tubeless Ready, EXO -
Accessories
Spirgrips+ Inner Bar ends -
Approx weight in KG
11.4 (Tubless setup without pedals) -
Approx weight in LBS
25.13 (Tubless setup without pedals) -
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
-
