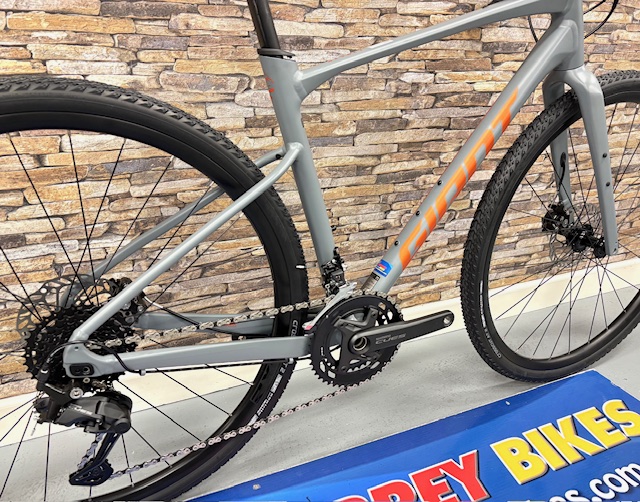

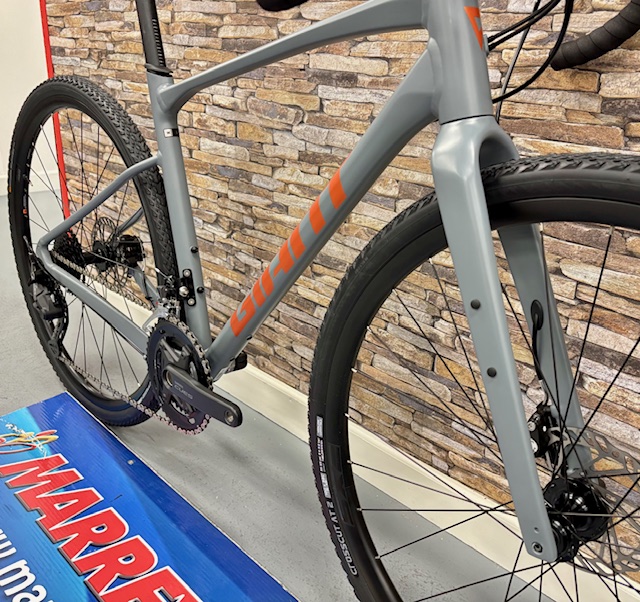

Giant Revolt 2 Gravel Bike

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or drop

This Bike is Medium only – Suitable for a person: 166 cms to 178 cms

• Sizes
  XS, S, M, M/L, L, XL
• Colours
  Ocean Storm
• Frame
  ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar
  Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  cork tape with gel
• Stem
  Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Giant D-Fuse, alloy, 14mm offset
• Saddle
  Giant Grit
• Shifters
  Shimano CUES U3030, 2×9
• Front Derailleur
  Shimano CUES U6030
• Rear Derailleur
  Shimano CUES U4020
• Brakes
  Shimano BR-RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  Shimano CUES U3030 hydraulic
• Cassette
  Shimano CS-LG300, 11×36
• Chain
  KMC X11
• Crankset
  Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  Shimano, threaded
• Rims
  Giant S-X2, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  stainless
• Tyres
  Giant CrossCut AT 2, 700x38c, tubeless
• Extras
  tubeless prepared
• Max Tire Clearance
  53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
